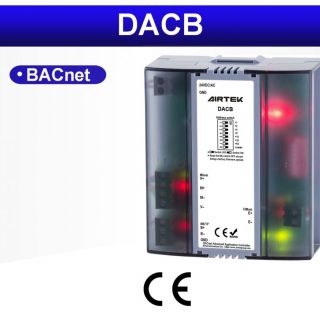

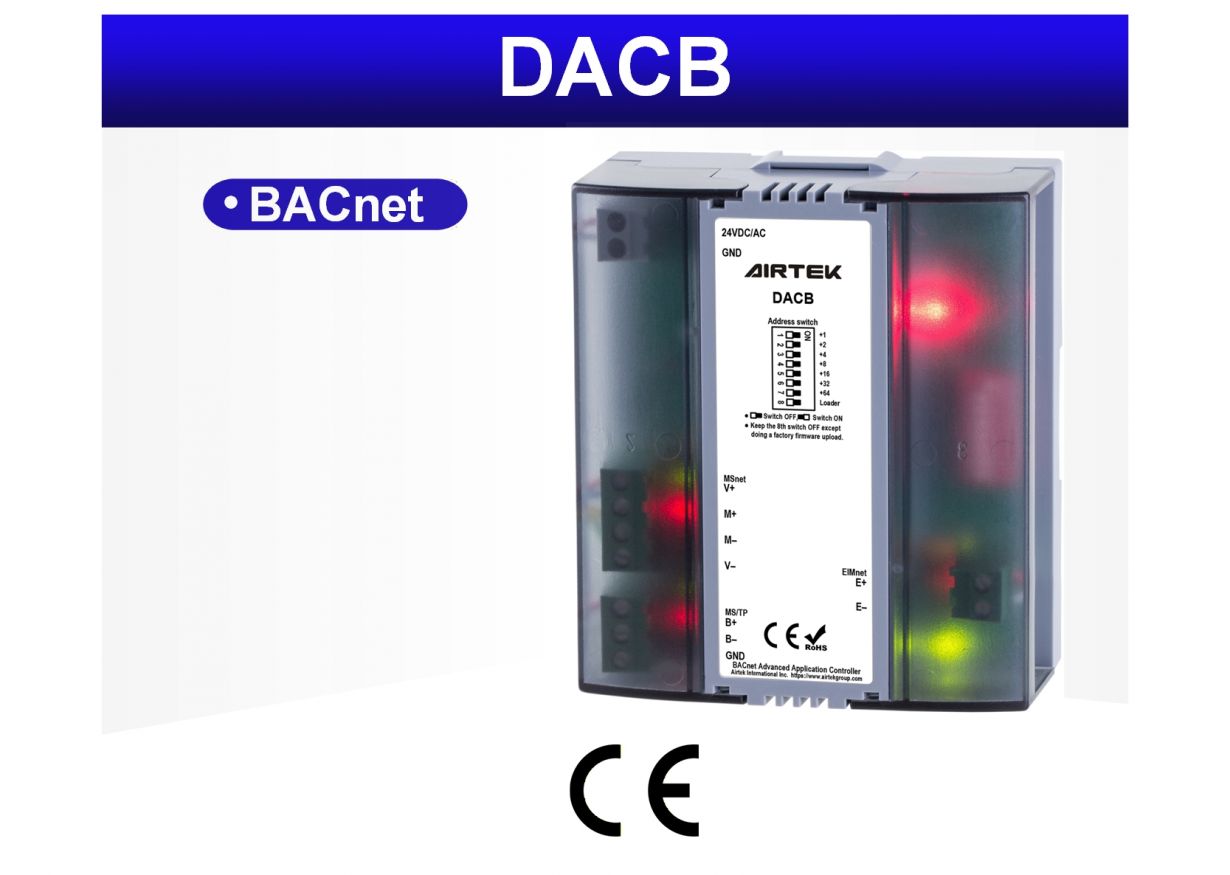

BACnet Advanced Application Controller
Model：DACB
DACB is a BTL listed standalone BACnet B-AAC class programmable controller. It is designed for monitor and control building electromechanical device, large AHU, clean room, fume hood, large-scale end device control. It uses 32-bit microprocessor core, communication speed up to 76,800 bps, transmission distance up to 1,200 meters. DACB doesn’t have I/O point. It must be configured EIM expansion I/O modules then it can work. Up to 12 EIM modules can be connected to it. Total number of I/O points can be selected by using different combinations of EIM. In addition it has an MSnet port can connect to an external LCD control panel to make user operation and control easily at the job site. DACB conforms international BACnet MS/TP communication protocol and fully compatible with any BACnet system. It is absolutely the best product for your building.
PDF Download
DACB is a BTL listed standalone BACnet B-AAC class programmable controller. It is designed for monitor and control building electromechanical device, large AHU, clean room, fume hood, large-scale end device control. It uses 32-bit microprocessor core, communication speed up to 76,800 bps, transmission distance up to 1,200 meters.
DACB is a BTL listed standalone BACnet B-AAC class programmable controller. It is designed for monitor and control building electromechanical device, large AHU, clean room, fume hood, large-scale end device control. It uses 32-bit microprocessor core, communication speed up to 76,800 bps, transmission distance up to 1,200 meters.
