BACnet Advanced Application Controller + Touch panel

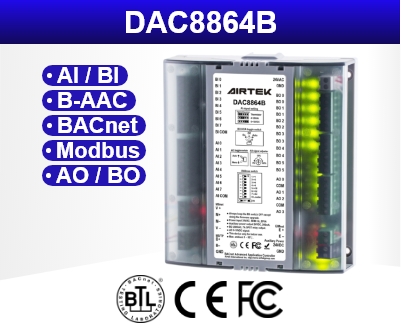

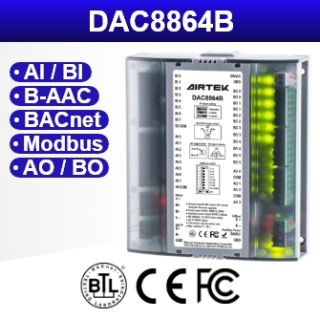

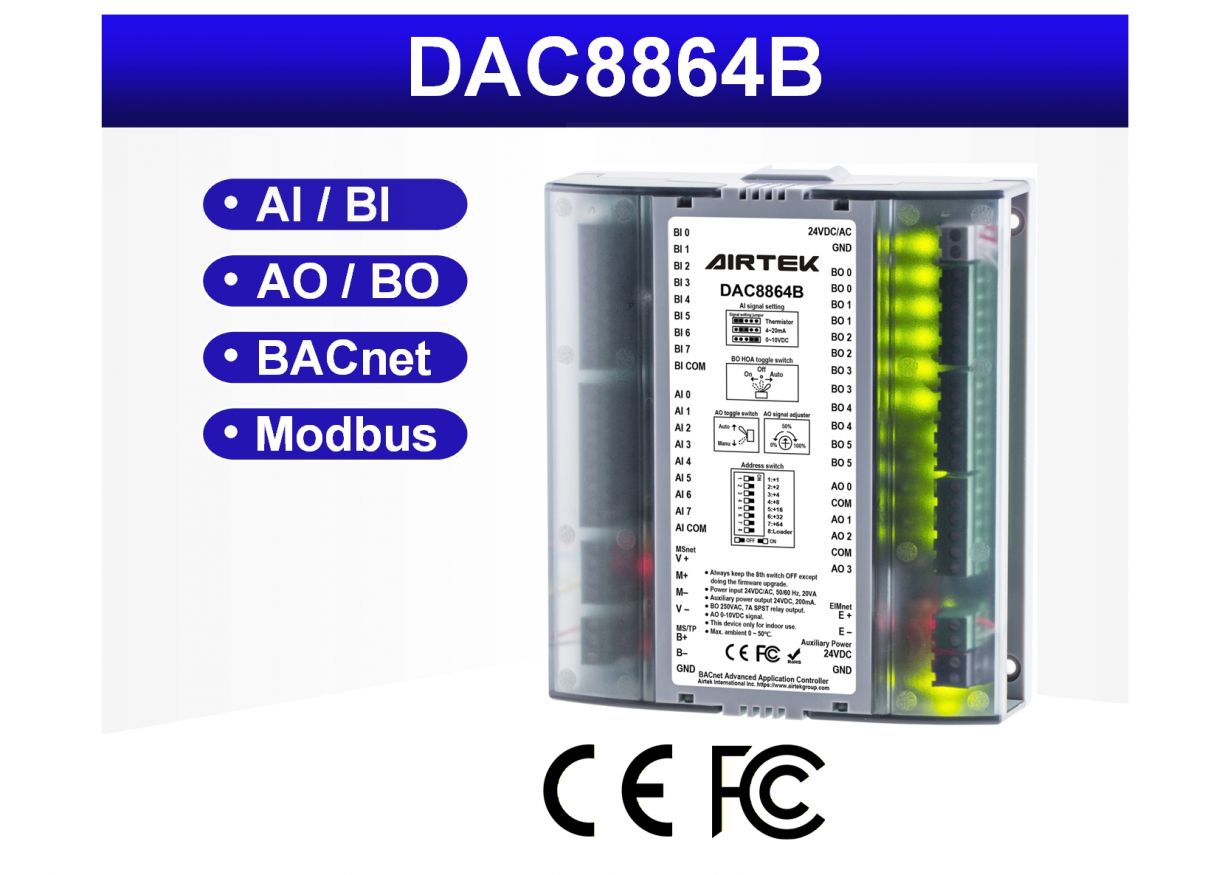

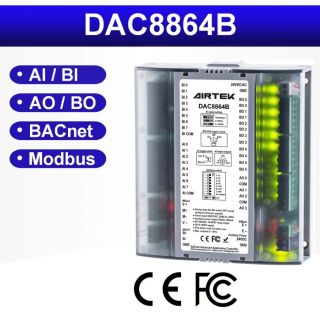

DAC8864B is a BTL listed standalone BACnet B-AAC class programmable controller. It is designed for monitor and control building electromechanical device, large AHU, clean room, fume hood, large-scale end device control. It uses 32-bit microprocessor core, communication speed up to 76,800 bps, transmission distance up to 1,200 meters. DAC8864B has 8 Binary Inputs(BI), 8 Analog Inputs(AI), 6 Binary Outputs(BO) and 4 Analog Outputs (AO). In addition, it has an EIMnet port can connect up to 12 EIM series of expansion modules, allowing you to expand in response to the needs of various points. Another MSnet port can connect to an external LCD control panel to make user operation and control easily at the job site. DAC8864B conforms to international BACnet MS/TP communication protocol, and fully compatible with any BACnet system. It is absolutely the best product for your building.
